2JZGTE MOTOR TOYOTA ARISTO, SUPRA 3.0L TWIN TURBO VVTI DOHC ENGINE TRANS ECU

Description

2JZGTE MOTOR TOYOTA ARISTO, SUPRA 3.0L TWIN TURBO VVTI DOHC ENGINE TRANS ECU

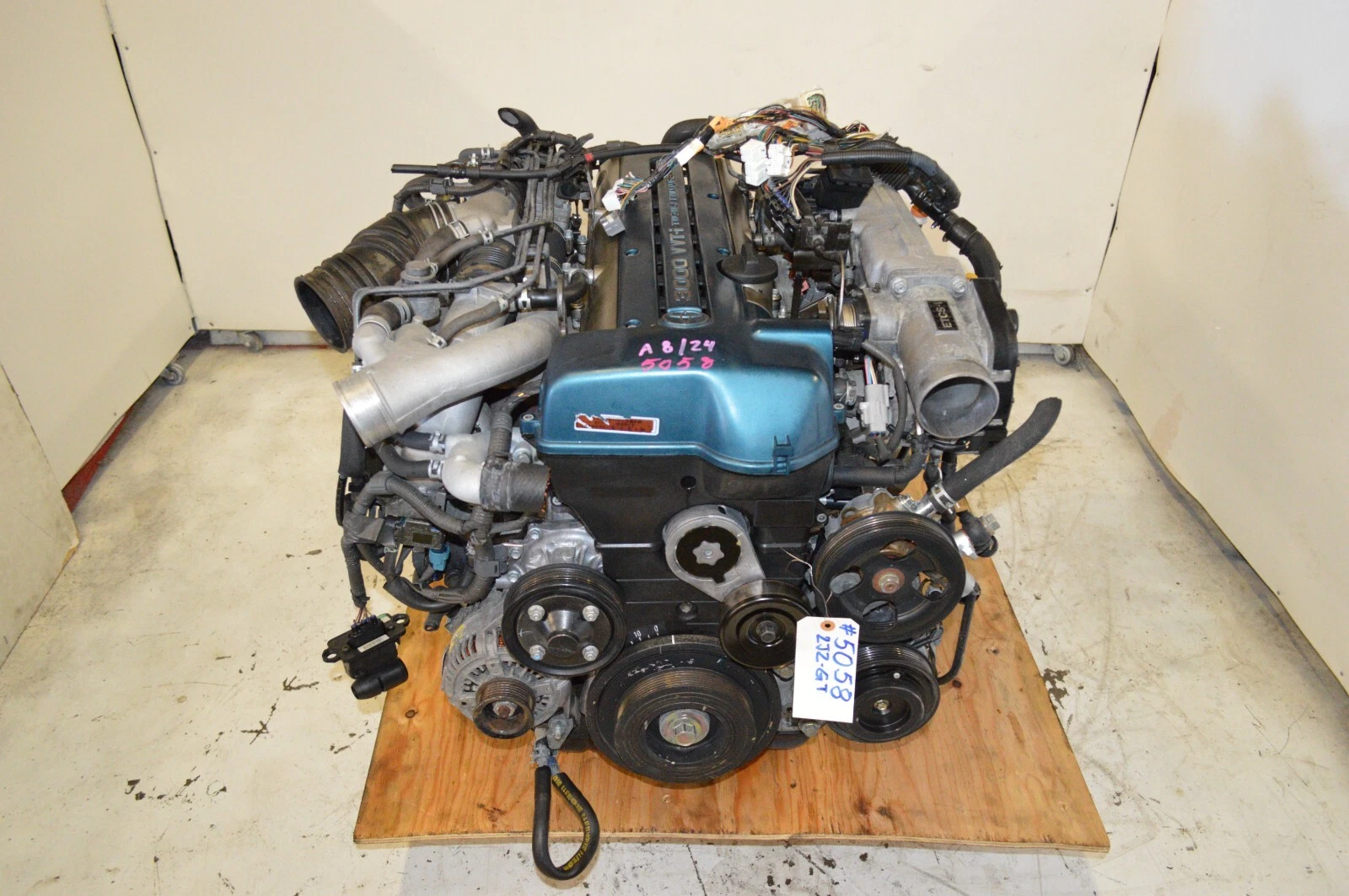

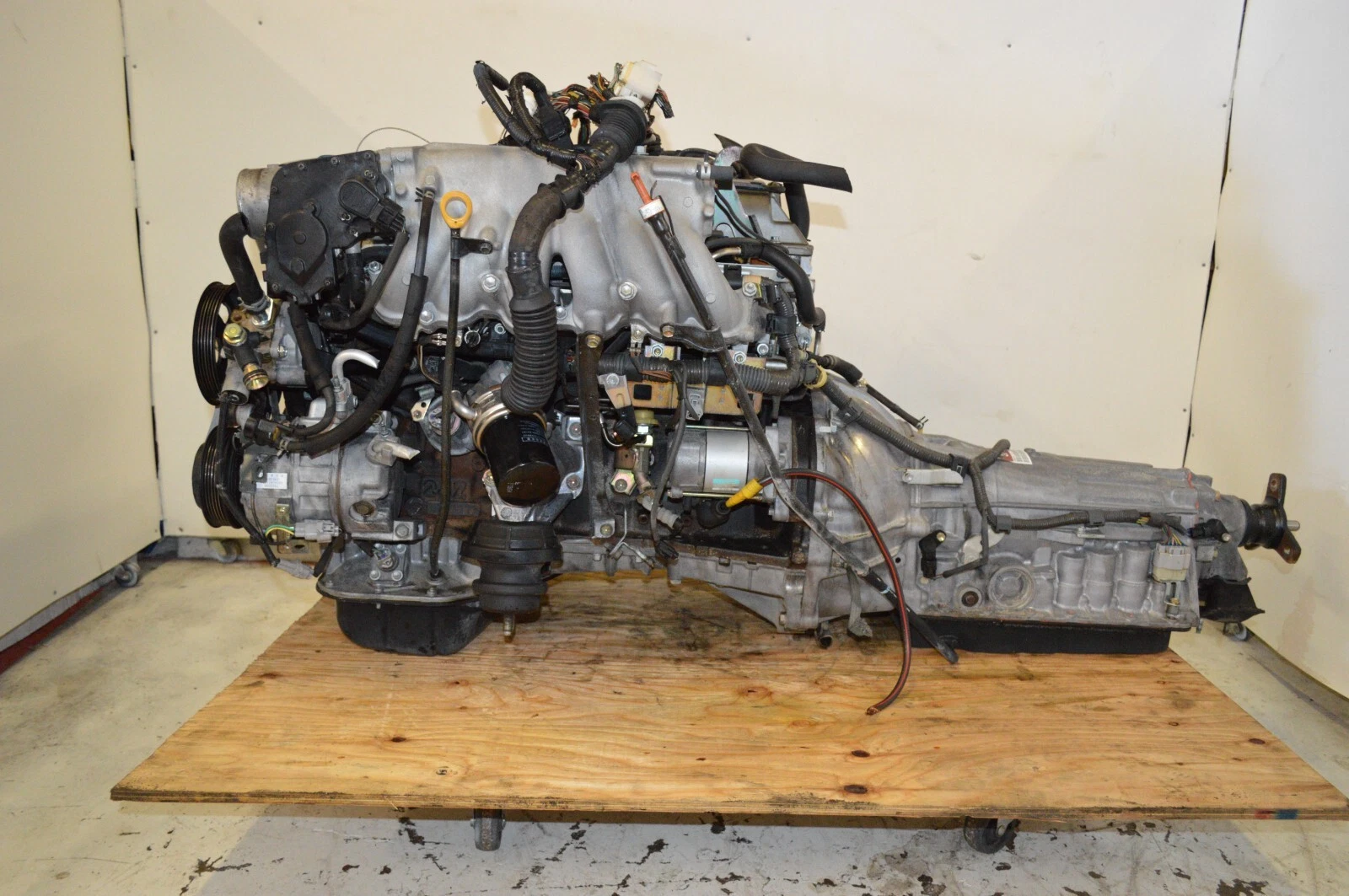

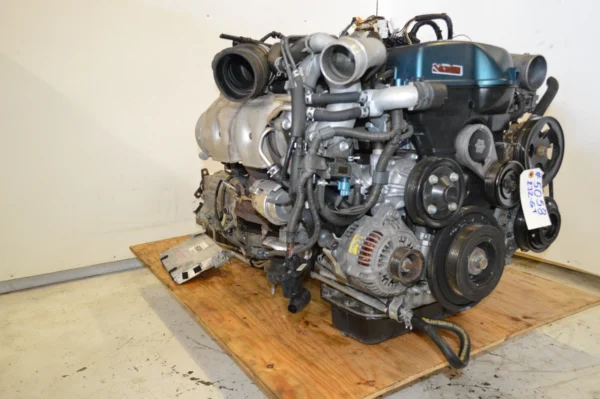

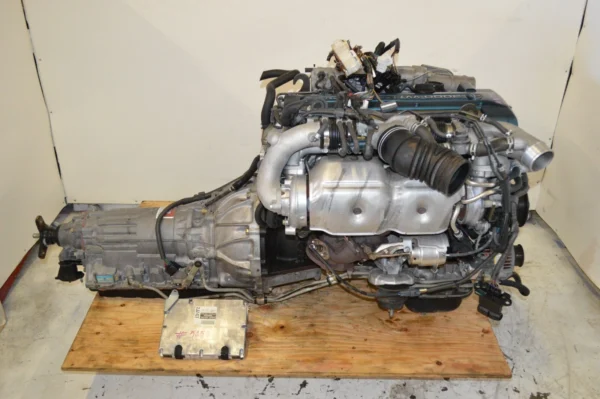

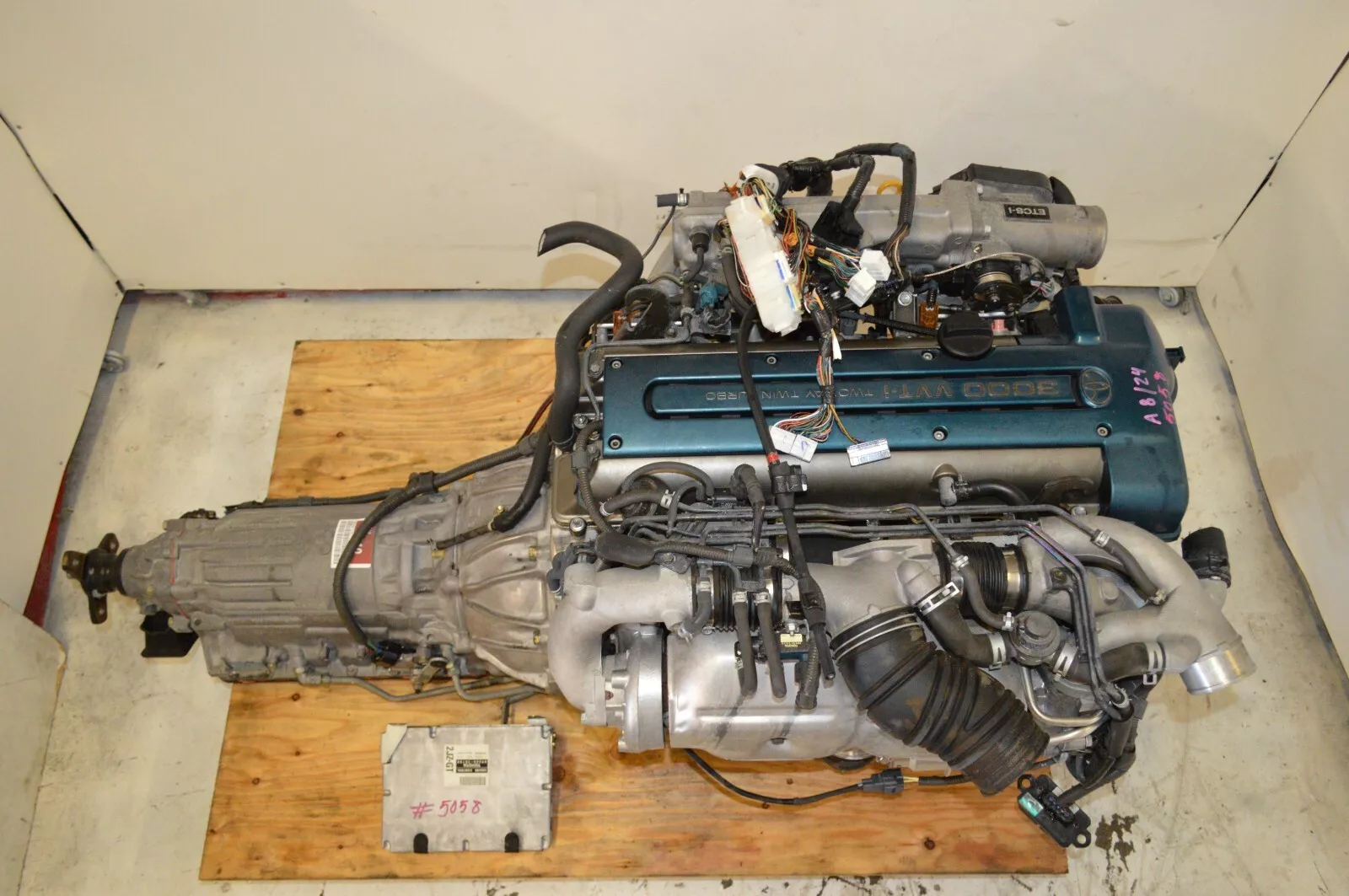

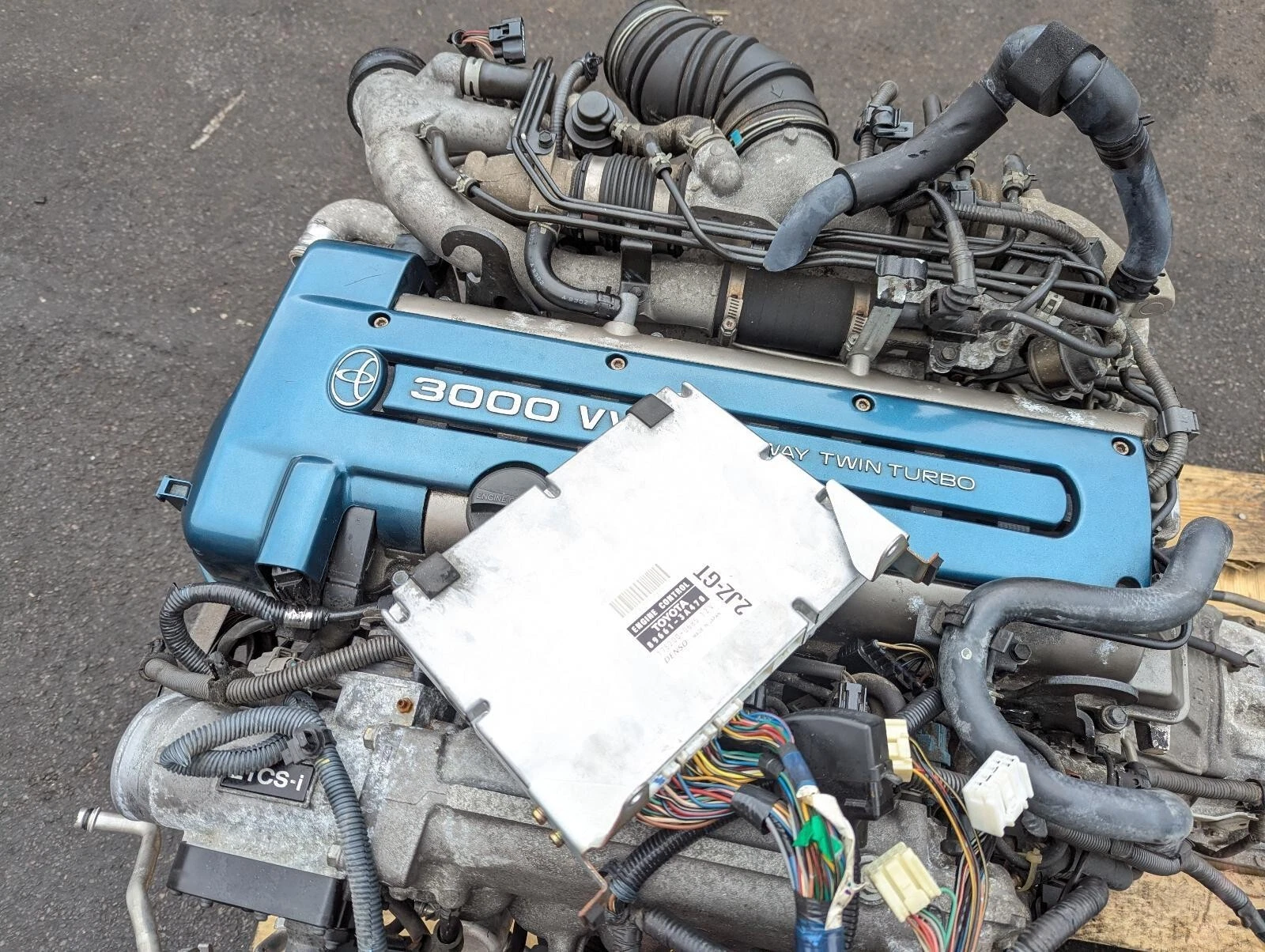

The 2JZ-GTE Motor is a legendary 3.0L inline 6-cylinder twin-turbocharged engine with VVT-i and DOHC technology, widely known for its robust performance and tuning potential. Originally found in the Toyota Aristo and Supra, this engine features a cast-iron block and aluminum head, delivering a factory-rated 320 hp at 5,600 rpm and 315 lb-ft of torque at 4,000 rpm.

Key Features and Specifications:
Engine Type: 3.0L Inline-6, DOHC, 24-valve, twin turbocharged

Variable Valve Timing: VVT-i (Variable Valve Timing with intelligence)

Bore x Stroke: 86.0 mm × 86.0 mm (square design)

Compression Ratio: 8.5:1

Fuel System: Sequential multiport fuel injection (SFI)

Turbochargers: Sequential twin turbos (Toyota CT12A or CT12B depending on market)

Cooling: Water-jacketed turbochargers with air-to-air intercooler

Power Output: Approximately 320 hp (239 kW) @ 5600 rpm

Torque: Around 427 Nm (315 lb-ft) @ 4000 rpm

Transmission: Often paired with Toyota A340E 4-speed automatic or V160/161 6-speed manual (Type 233)

Applications: Toyota Aristo (JZS147, JZS161), Toyota Supra MK4 (JZA80)

Included Components in Typical JDM Engine Sets:
Complete engine (head and block with external components)

Transmission (usually RWD automatic)

Wiring loom

ECU/ECM

Performance and Tuning Potential:
The 2JZ-GTE is renowned for its durability and ability to handle high horsepower upgrades, often exceeding 600 hp with proper modifications. Its strong iron block and efficient twin-turbo setup make it a favorite among tuners and motorsport enthusiasts.

Warranty:
Typically, JDM engine packages come with a limited warranty (e.g., 30-day startup warranty on internal moving parts).

This engine is celebrated for its combination of factory reliability, high output, and immense tuning capacity, making it a top choice for performance builds and swaps in Toyota Aristo, Supra, and other compatible platforms.
